Q1:

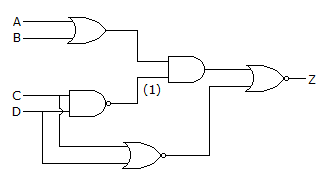

Consider the circuit

The line 1 is at stuck at '0' then output Z is equal to:

A 0

B (C + D)

C 1

D
(A + B) + (C + D)

ANS:B - (C + D)

Output of AND gate is 0 Thus Z = = (C + D).
